SolisĀ 24

Solis 24

Solis 24

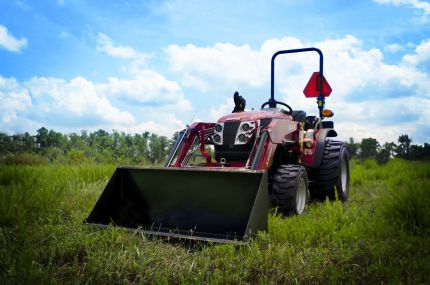

The SOLIS 24 4-Wheel-Drive (4WD) is a 24-engine-horsepower, gear-transmission tractor that provides affordability with the convenience of an extra compact size, all while providing power and durability that takes after much larger tractors.

  • 925lb. Loader Lift Capacity with Skid Steer Quick Attach
  • Single Rear Remote Standard
  • 2,325 lbs of tractor weight

Tough. Rugged. Value.

The SOLIS 24 is a truly a Tough, Rugged, Value tractor. It has the designed weight, strength, simplicity, and durability to mow, load, till, and haul all day long, year after year. When you need a compact, affordable, simple, and durable tractor, the SOLIS 24 may be the tractor for you.

Solis 24

Specifications

Engine

Engine Model Mitsubishi S3L2
HP Category 24 HP
Number of Cylinders 3
Aspiration Natural
Cubic Capacity (ci) 80.42
Rated RPM (+/- 25mm) 2500

Transmission

Drive 4WD
Clutch Single
Gearbox 6+2
Transmission Type Sliding Mesh

Brakes

Type Oil Immersed Brakes
Type of Actuation Mechanical, Foot operated

Differential Lock

Standard

PTO

PTO HP 17.96 HP
PTO (rpm) 540@2491
PTO (actuation) Mechanical

Steering

Power steering

Hydraulics

3-point linkage CAT 1N
3-point lift capacity @ ball ends (Lbs) 1,322
Auxilliary hydraulic circuit 1DA
Implement hydraulic flow (GPM) 3.27
Steering hyrdaulic flow (GPM) 3.27

Capacities

Fuel tank 7 (gal)

Tires

Industrial (R4) - Front 23x8.50-12
Industrial (R4) - Rear 33x15.50-16.5
Turf (R3) - Front 23x8.50-12
Turf (R3) - Rear 33x15.50-16.5

Dimensions & Weights

Wheel Base 61.4 in
Total Length (in) 107.3
Height (in) Up to ROPS 83.8
Weight with Industrial Tires 2,325 lbs
Weight with Turf Tires 2,348 lbs
Width with Indusrtrial Tires 55.5 in
Width wih Turf Tires 55.7 in

Warranty and service

A 5 year limited warranty on the powertrain is standard on all new Yanmar Compact tractor purchases. Yanmar attachments are covered by a one-year limited warranty.

Two different types of Solis tractors lined up diagonally left.
