SolisĀ 40 2WD

Solis 40 2WD

The Solis 40 Tractors are designed to be a Tough, Rugged, Value for people needing a durable, affordable machine for their farm or ranch.

Solis 40 2WD

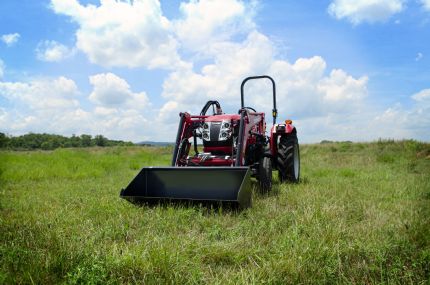

The SOLIS 40 2-Wheel-Drive (2WD) is a 40-engine-horsepower, gear-transmission tractor that is set apart from the typical compact or utility tractor on the market today. The SOLIS 40 is exactly what many tractor buyers are looking for. With 2WD and a gear transmission, the SOLIS 40 is the ultimate in traditional tractor simplicity, affordability and durability. The SOLIS 40 is perfect example of the Tough, Rugged, Value character that SOLIS tractors are designed to deliver.

  • Standard Self-Leveling Loader with Skid Steer Quick Attach
  • Dual Rear Remotes
  • 2WD only

Tough. Rugged. Value.

Why purchase a 2-wheel-drive tractor? 2-wheel-drive tractors are tight-turning and highly maneuverable compared to much of their competition.

Solis 40 2WD

Specifications

Engine

Engine Model 3100 FLI, Inline FIP with Coldstart
HP Category 40 HP
Number of Cylinders 3
Aspiration Natural
Cubic Capacity (ci) 169.64
Rated RPM (+/- 25mm) 2100

Transmission

Drive 2WD
Clutch Dual
Gearbox 8F+2R
Transmission Type Mechanical, Constant Mesh

Brakes

Type Oil Immersed Brakes
Type of Actuation Mechanical, Foot operated

Differential Lock

Standard

PTO

PTO HP 32.96
PTO (rpm) 540@1680
PTO (actuation) Mechanical, Hand Operated

Steering

Power steering

Hydraulics

3-point linkage CAT-II
3-point lift capacity @ ball ends (Lbs) 3,527
Auxilliary hydraulic circuit 2DA
Implement hydraulic flow (GPM) 5.8
Steering hyrdaulic flow (GPM) 4.17

Capacities

Fuel tank 17 gal.

Tires

AG - Front 6x16
AG - Rear 12.4x28

Dimensions & Weights

Weight (lbs) 5,390
Wheel Base 77.90 in
Total Length (in) 150.4
Total Width (in) 71.3
Height (in) Up to ROPS 97.3

Warranty and service

A 5 year limited warranty on the powertrain is standard on all new Yanmar Utility tractor purchases. Yanmar attachments are covered by a one-year limited warranty.
