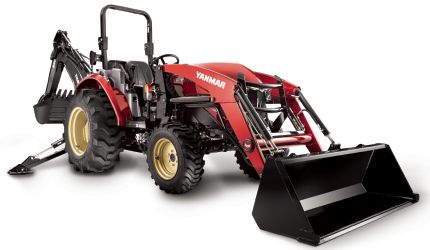

YT347

46 Engine Horsepower* Diesel Tractor

No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of the Yanmar YT347. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT347 and its innovative technology, you get both.

High-Performance Drivetrain

The exclusive i-HMT design efficiently converts horsepower from a 4-cylinder diesel engine into the energy you need to run a wide range of attachments for mowing, plowing, digging, lifting and hauling. The unique transmission lets you choose the right speed for every task and application.

  • Low fuel consumption due to transmission efficiency
  • Fingertip, clutch-less control of forward/reverse
  • Stop the tractor without using the clutch
  • 46 horsepower

Simple but Powerful

Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT347 includes an auto throttle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches.

Yanmar designs and builds the major components – engine, front axle, transmission and final drive – to work together. Then Yanmar smoothly integrates these features and optional attachments so you can get more work done quickly:

  • Yanmar-designed front-end loader, with class-leading lift capacity of 2,500 pounds and an industry-standard, skid-steer-style, quick-attach system for buckets, forks and other loader attachments
  • Large LCD display integrates with controls
  • Engine surpasses U.S. Tier 4 clean air requirements
  • One-touch-on/off, electro-hydraulic, independent rear power takeoff (PTO)

Specifications

Powertrain

Alternator 12-55
Aspiration Naturally Aspirated
Battery 650 CCA
Cooling system Liquid cooled
Fuel Diesel
Gross Power 46 HP (34.3 kW)*
Maker Yanmar
Model 4TNV88C Tier 4
Number of cylinders 4
PTO Power at Working Speed 39.5 HP (29.1 kW)
PTO Power at Zero Speed 36.4 HP (26.8 kW)
Rated RPM 2,800 RPM
Total displacement 133.5 cu. In. (2.189 L)
Type 46 Engine Horsepower* Diesel Tractor

Capacities

Fuel tank 12.7 gal. (48 L)

Drivetrain

2WD/4WD engagement Selectable
Brakes Mechanical Wet Disc
Number of ranges 3 Range (Variable Speed)
Rear differential lock Foot pedal engagement
Rear PTO/RPM 540 RPM
Reverser Power shift
Transmission type I-HMT(Integrated Hydro Mechanical Transmission)

Hydraulics

3-point hitch Category 1
3-point lift capacity (std.) 3,659 lbf. (1,660 kgf)
3-point lift capacity at 24” (61 cm) 3,086 lbf. (1,400 kgf)
4-way loader control valve Standard
Power steering Fully Hydraulic
Pump capacity (implement) @ Rated 10.1 GPM (38.3 L/min)
Pump capacity (steering) @ Rated RPM 5.7 GPM (21.7 L/min)

Dimensions

Ground Clearance (with R4 Tires) 12.8” (326 mm)
Overall height (with R4 Tires) 89.5” (2,273 mm)
Overall length (with 3PH and R4 Tires) 130.9” (3,325 mm)
Weight (with ROPS, R4 Tires, Full Fluid) 3,880 lbs. (1,760 kg)
Wheelbase 75.9” (1,927 mm)
Width (with R4 Tires) 70.6” (1,793 mm)

Tire size

Ag (R1) - Front 8” - 16”
Ag (R1) - Rear 14.9” - 24”
Industrial (R4) - Front 10” - 16.5”
Industrial (R4) - Rear 17.5” L - 24”
Turf (R3) - Front 27” x 10.5” - 15”
Turf (R3) - Rear 44” x 18” - 20”

Traveling speeds

Forward (with R1 Tires) 0 - 18 mph (0 - 29 kmh)
Reverse (with R1 Tires) 0 - 18 mph (0 - 29 kmh)

Warranty

Attachments 1-year limited warranty
Power train (Engine and transmission core components) 5 years or 2,500 hours
Tractor (Private Individual Usage) 24 months or 2,000 hours

Warranty and service

A five-year limited warranty on the powertrain is standard on all new Yanmar YT3 Series tractor purchases.
Yanmar attachments are covered by a one-year limited warranty.
