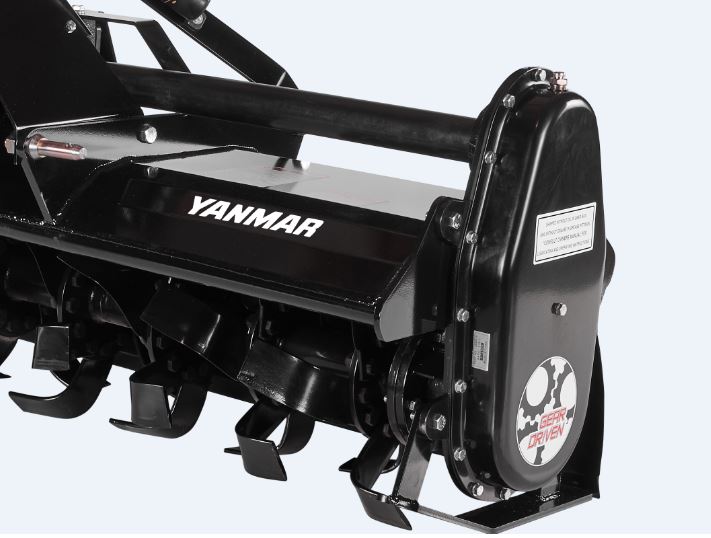

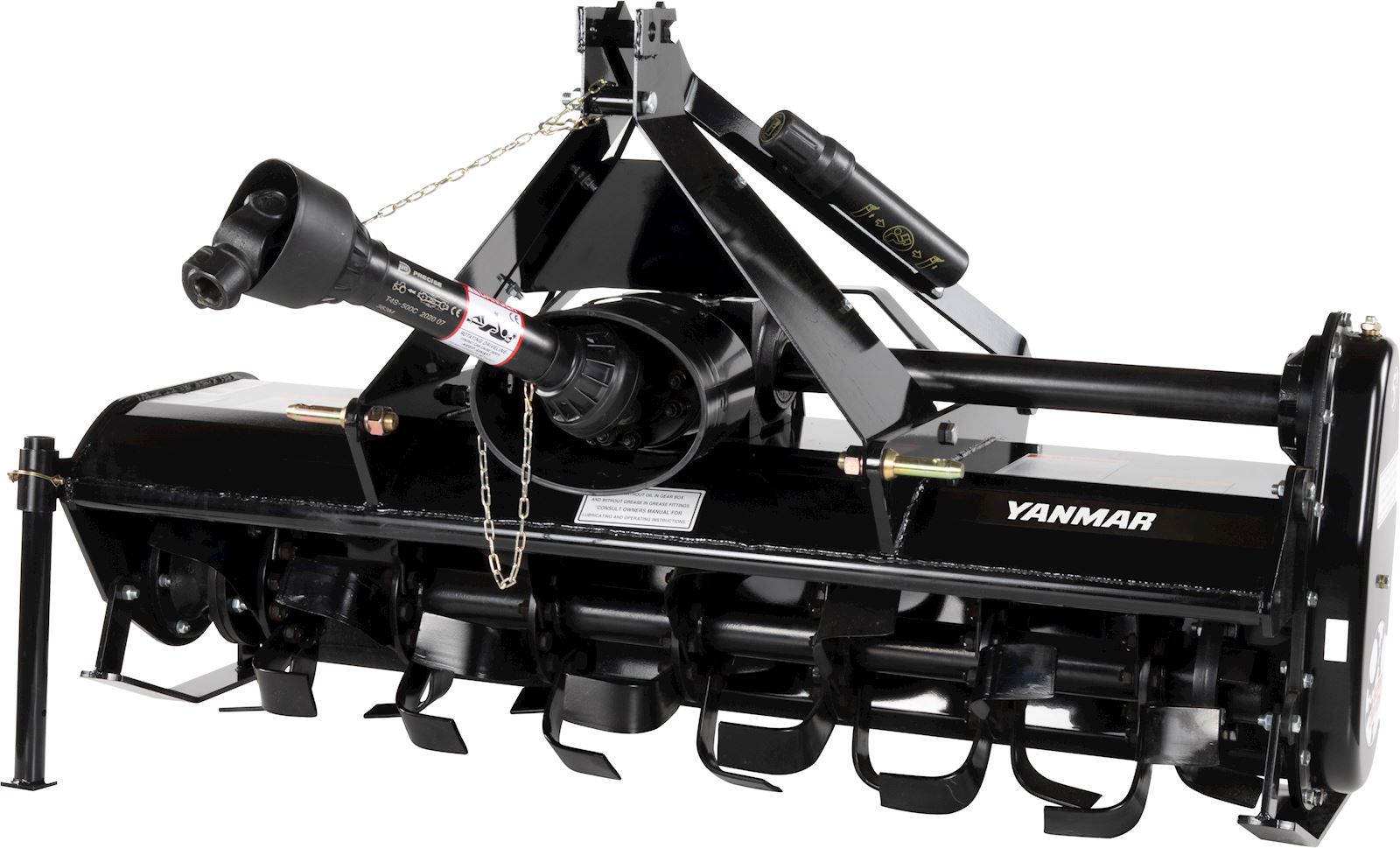

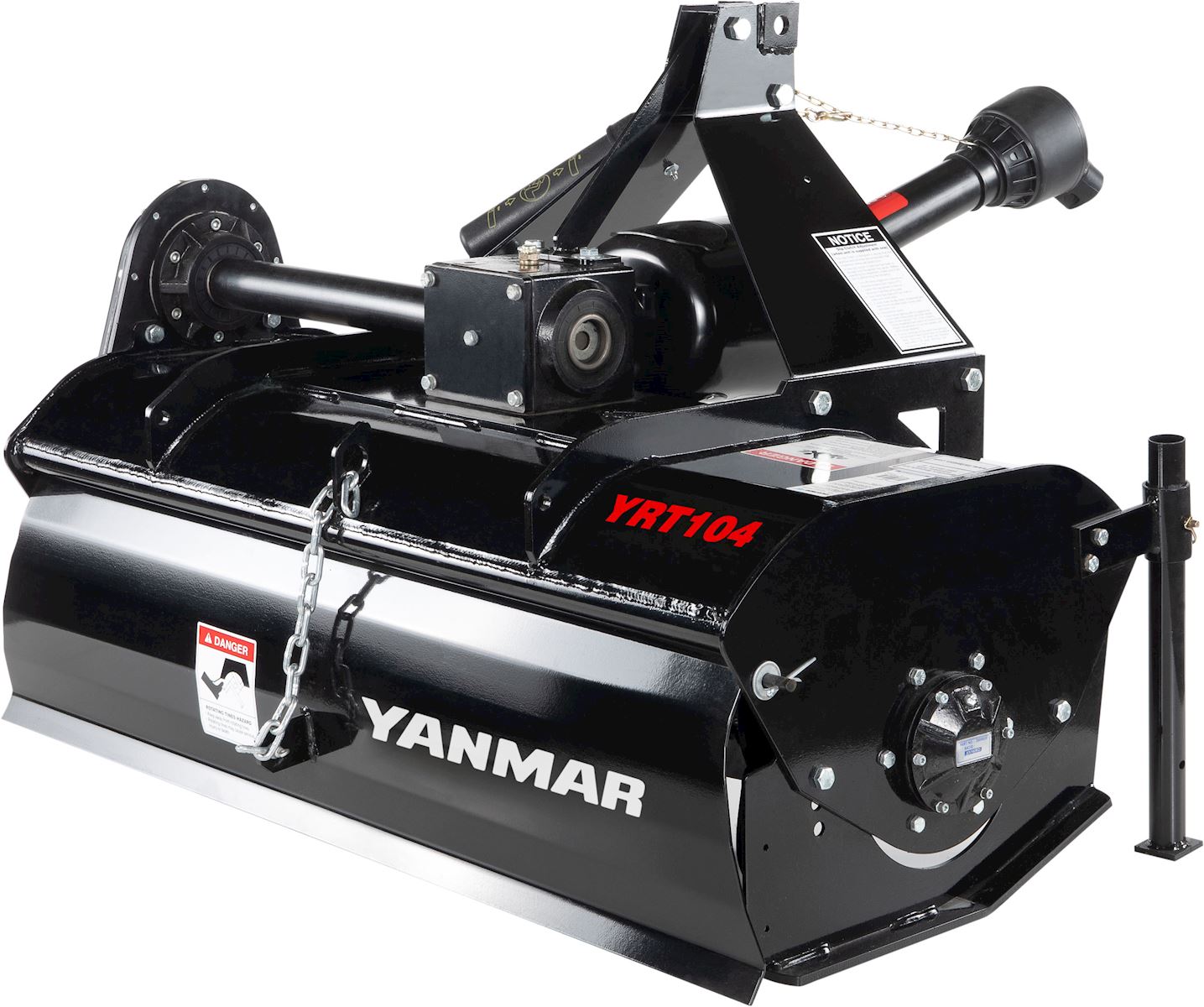

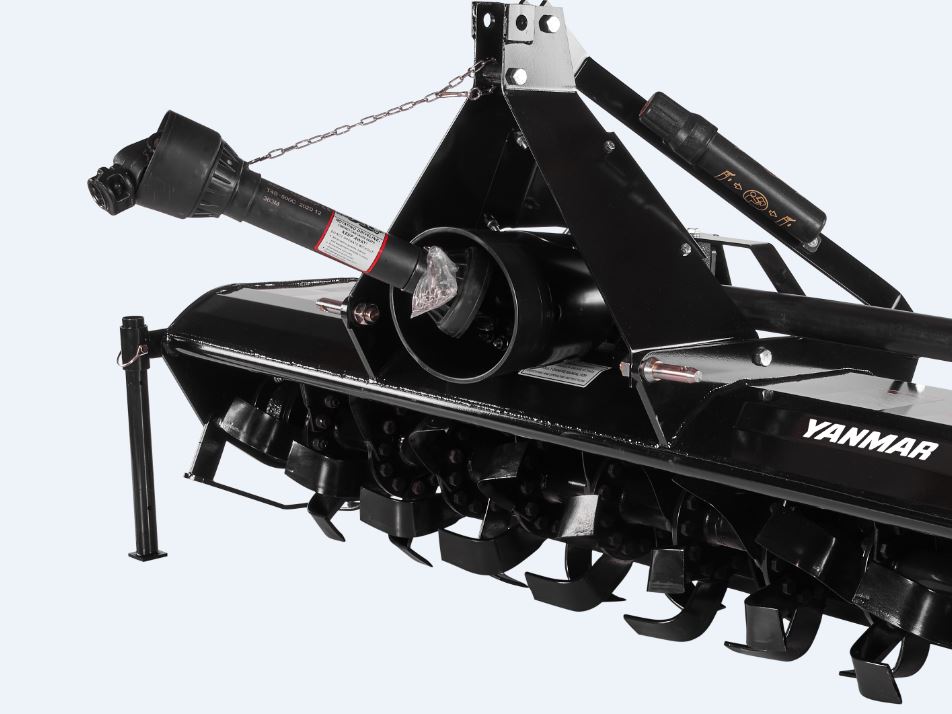

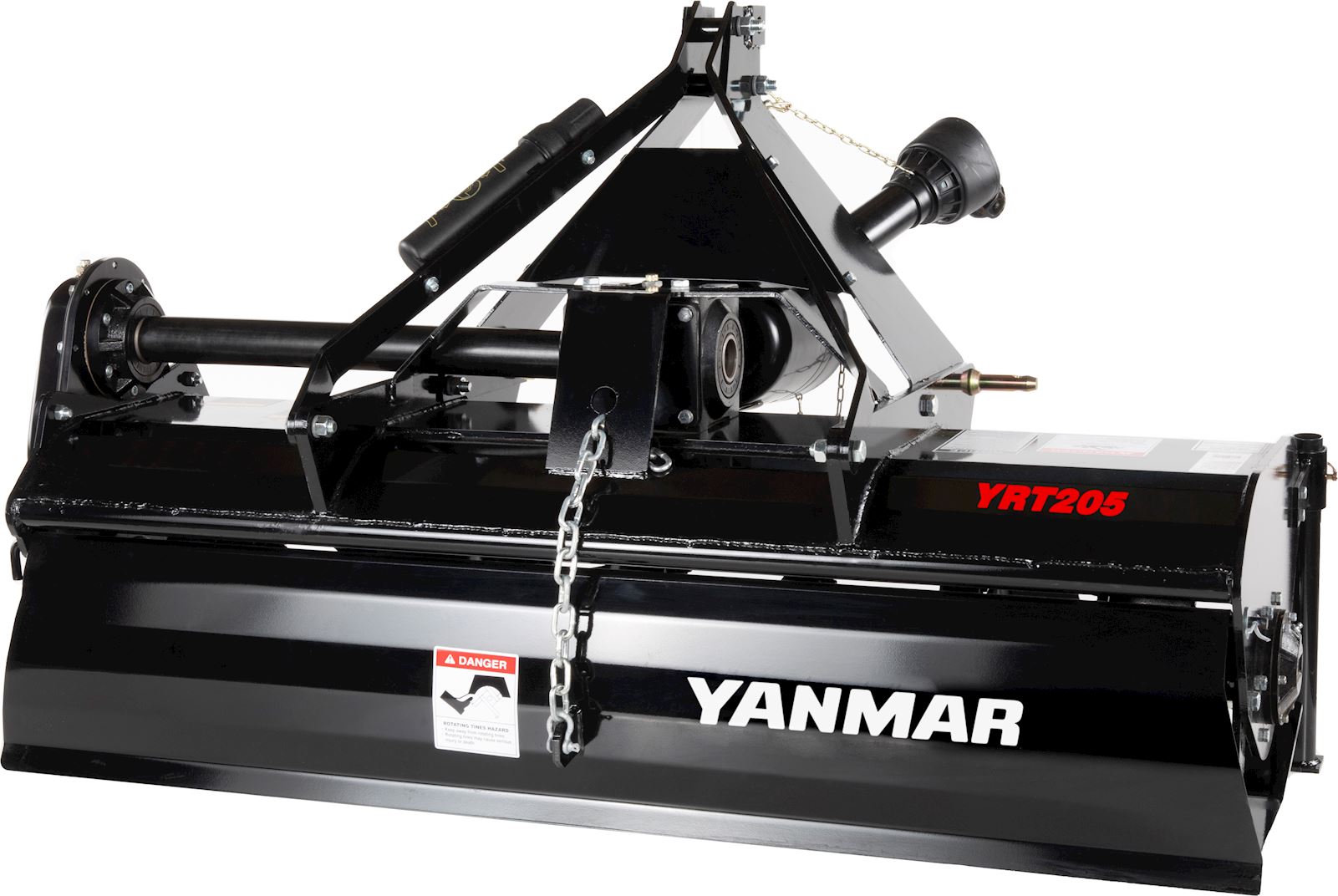

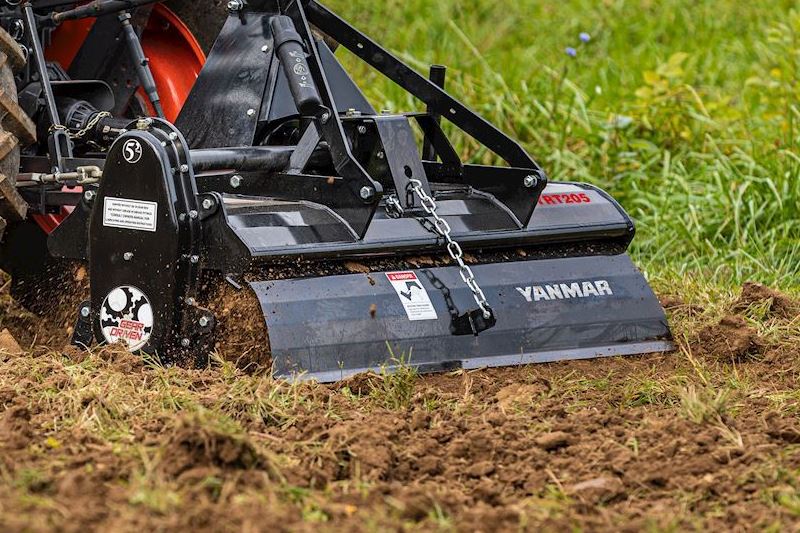

Rotary Tiller
Get your hands in the dirt, without getting your hands in the dirt.
The Yanmar rotary tiller excels at working acres of dirt and creating large food plots. They cultivate land: stirring up soil for gardens, food plots, laying sod, and other tillage needs.
Choose from up to four depth levels to mix up loose soil or break up the toughest ground.
The Tiller’s self-sharpening tines are wide and made of high-quality steel to mix up the
soil better. And if things turn rocky, these rugged tillers are built tough at every key point.
Available in 4, 5, 6, and 7-foot sizes.
Find a dealer
Build my tractor
Compare models
Specs & Compare
Featured Specs
| Model |
YRT104 |
YRT205 |
YRT206 |
| Recommended tractor PTO Horsepower |
15-35 | 25-50 | 30-50 |
| Weight |
470 | 638 lbs. | 718 lbs. |
| Working Depth (in.) |
7" | 7" | 7" |
| Working Width (in.) |
46.5" | 58.75" | 70.59" |
| Overall Width (in.) |
51.5" | 64" | 76" |
| Hitch Cat. / Type |
Limited Cat 1/ Quick Hitch Compatible | Cat 1/ Quick Hitch Compatible | Cat 1/ Quick Hitch Compatible |
| Driveline Protection |
540 RPM Slip Clutch Protection | 540 RPM Slip Clutch Protection | 540 RPM Slip Clutch Protection |
| Number of Flanges on Rotor |
6 | 7 | 9 |
| No. of Tines per Flange |
4 | 6 | 6 |
| Rotor Rotation |
Reversible (FWD/ REV) | Reversible (FWD/ REV) | Reversible (FWD/ REV) |
| Rotor Speed |
211 rpm @ 540 rpm PTO | 211 rpm @ 540 rpm PTO | 211 rpm @ 540 rpm PTO |
| Skid Shoe Adjustment |
Adjustable (0.4", 1.4",2.4") | -- | -- |
| Skid Shoes |
-- | Adjustable (0.4", 1.4",2.4") | Adjustable (0.4", 1.4",2.4") |
| Top Gearbox Construction |
Cast Iron Housing, Precision Forged Steel Gears | Cast Iron Housing, Hardened Steel Gears | Cast Iron Housing, Hardened Steel Gears |
| Side Drive Construction |
Formed Steel Housing, Hardened Steel Gears | Formed Steel Housing, Hardened Steel Gears | Formed Steel Housing, Hardened Steel Gears |
| Top Gearbox Lubrication |
EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil |
| Side Drive Lubrication |
EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil |
| Major Construction |
-- | 3/8" solid steel gearbox plate and endplates, 5/8" steel hitch frame | 3/8" solid steel gearbox plate and endplates, 5/8" steel hitch frame |
Download full spec sheet
