MSRP |
$2,076.38 | $2,310.66 | $3,000.00 | $2,500.00 | $2,875.00 | $3,250.00 |
|
Weight |
453 lbs. | 530 lbs. | 623 lbs. | 463 lbs. | 530 lbs. | 623 lbs. |
|
Hitch Cat. / Type |
Cat 1/ quick hitch compatible | Cat 1/ quick hitch compatible | Cat 1/ quick hitch compatible | Cat 1/ quick hitch compatible | Cat 1/ quick hitch compatible | Cat 1/ quick hitch compatible |
|
Cutting Width (ft.) |
4' | 5' | 6' | 4' | 5' | 6' |
|
Overall Width (in.) |
51" | 64" | 75" | 51" | 64" | 64" |
|
Overall Length (in.) |
77" | 86" | 93" | 77" | 86" | 93" |
|
Deck Height (in.) |
7.5" | 7.5" | 7.5" | 7.5" | 7.5" | 7.5" |
|
Cutting Height Range (in.) |
1.5-9" | 1.5-9" | 1.5-9" | 1.5-9" | 1.5-9" | 1.5-9" |
|
Cutting Capacity (in.) |
up to 1" | up to 1" | up to 1" | up to 1" | up to 1" | up to 1" |
|
Recommended tractor PTO Horsepower |
18-45 | 20-50 | 25-60 | 18-45 | 20-50 | 25-60 |
|
Power Take-Off Speed |
540 | 540 | 540 | 540 | 540 | 540 |
|
Gearbox Housing |
45 hp cast iron housing, precision forged steel gears | 45 hp cast iron housing, precision forged steel gears | 45 hp cast iron housing, precision forged steel gears | 45 hp cast iron housing, precision forged steel gears | 45 hp cast iron housing, precision forged steel gears | 45 hp cast iron housing, precision forged steel gears |
|
Gearbox Lubrication |
EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil | EP 80-90W gear oil |
|
Gearbox Lubrication Capacity |
23 ounces | 23 ounces | 23 ounces | 23 ounces | 23 ounces | 23 ounces |
|
Deck Material Thickness |
12 Ga. | 12 Ga. | 12 Ga. | 12 Ga. | 12 Ga. | 12 Ga. |
|
Stump Jumper |
1/8" Thick, Round 22.3" pan-type | 1/8" Thick, Round 22.3" pan-type | 1/8" Thick, Round 22.3" pan-type | 1/8" Thick, Round 22.3" pan-type | 1/8" Thick, Round 22.3" pan-type | 1/8" Thick, Round 22.3" pan-type |
|
Blade Type |
1/2"x3" Heat Treated Free Swinging w/ suction lift | 1/2"x3" Heat Treated Free Swinging w/ suction lift | 1/2"x3" Heat Treated Free Swinging w/ suction lift | 1/2"x3" Heat Treated Free Swinging w/ suction lift | 1/2"x3" Heat Treated Free Swinging w/ suction lift | 1/2"x3" Heat Treated Free Swinging w/ suction lift |
|
Blade Tip Speed (fpm) |
9,982 ft./min. | 12,478 ft./min. | 14,974 ft./min. | 9,982 ft./min. | 12,478 ft./min. | 14,974 ft./min. |
|
Drive Type |
ASAE Cat 4 Shear Bolt Protection | ASAE Cat 4 Shear Bolt Protection | ASAE Cat 4 Shear Bolt Protection | ASAE Cat 4 Shear Bolt Protection | ASAE Cat 4 Shear Bolt Protection | ASAE Cat 4 Shear Bolt Protection |
|
Driveline Protection |
Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt |
|
Tail Wheel |
15" Laminated Tire | 15" Laminated Tire | 15" Laminated Tire | 15" Laminated Tire | 15" Laminated Tire | 15" Laminated Tire |
|

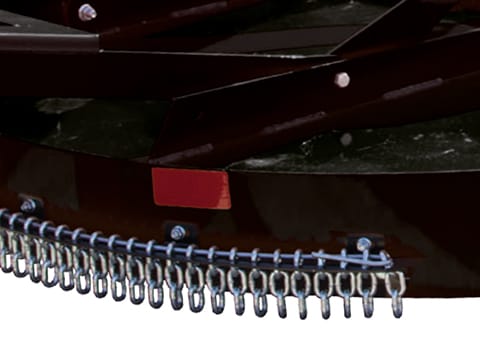

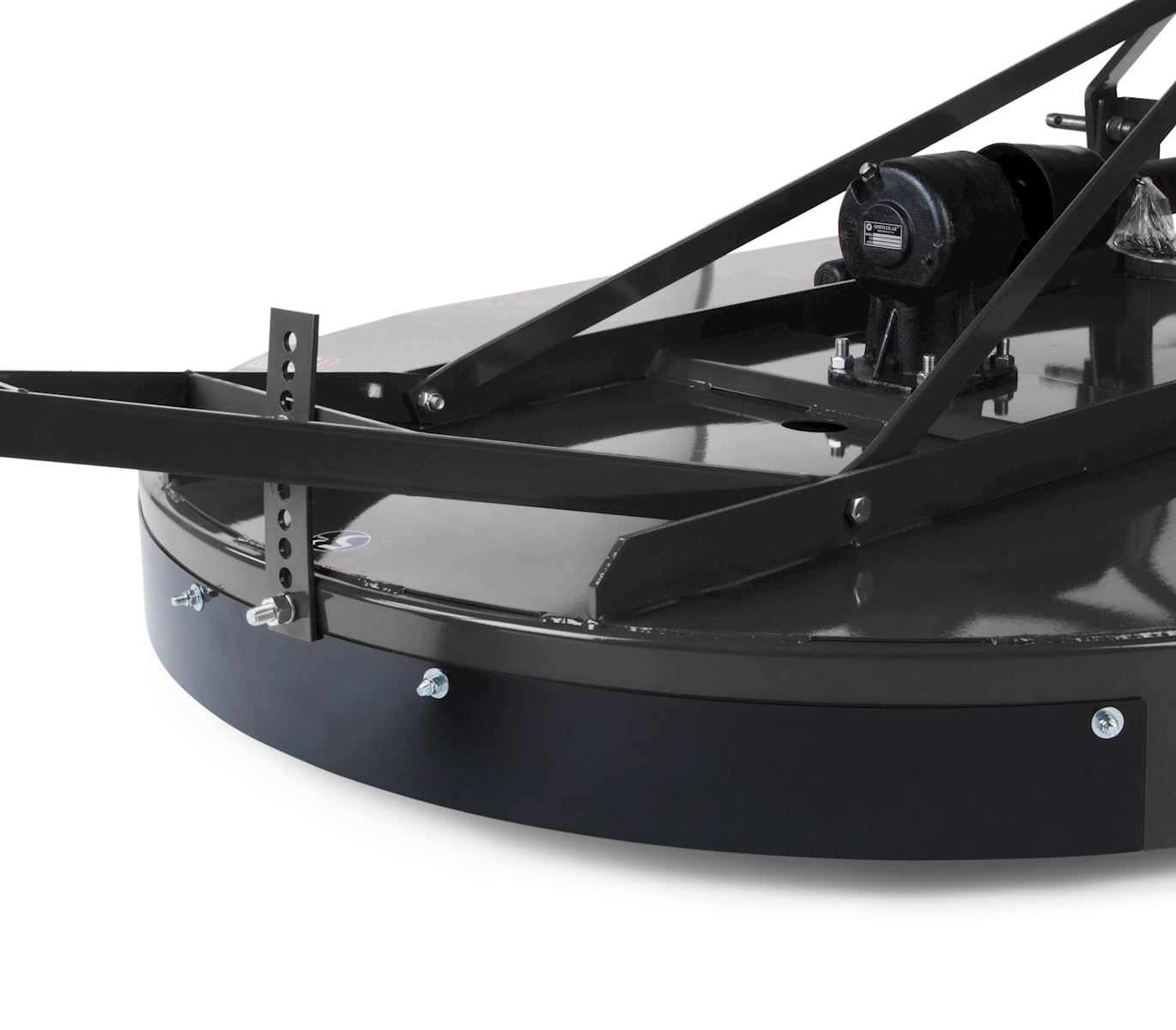

Safety Guards |
Optional Rubber Front/ Metal Rear (Standard) | Optional Rubber Front/ Metal Rear (Standard) | Optional Rubber Front/ Metal Rear (Standard) | Optional Rubber Front/ Metal Rear (Standard) | Optional Rubber Front/ Metal Rear (Standard) | Optional Rubber Front/ Metal Rear (Standard) |
|
Blade Bolt Size |
42mm socket | 42mm socket | 42mm socket | 42mm socket | 42mm socket | 42mm socket |
|
Shear Bolt |
1/2" x 3-1/2" Grd 2 Hex Bolt | 1/2" x 3-1/2" Grd 2 Hex Bolt | 1/2" x 3-1/2" Grd 2 Hex Bolt | 1/2" x 3-1/2" Grd 2 Hex Bolt | 1/2" x 3-1/2" Grd 2 Hex Bolt | 1/2" x 3-1/2" Grd 2 Hex Bolt |
|
Castle Nut on Gearbox |
38mm socket | 38mm socket | 38mm socket | 38mm socket | 38mm socket | 38mm socket |
