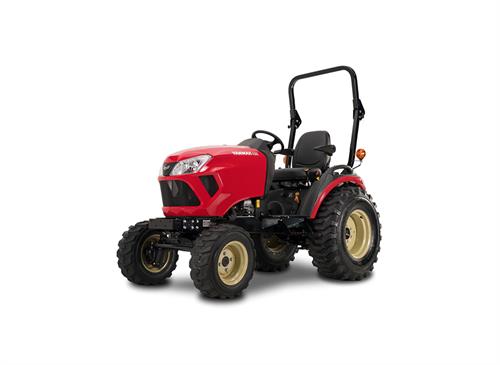

SA425DHX
Multi-purpose Compact Tractor
With input from tractor owners, we’ve raised the bar even higher, with performance upgrades to some of our most tried-and-true SA Series tractor models. With a new Yanmar SA Series tractor, your customers can get more done – more comfortably and more conveniently – than ever before.
Find a dealer
Build my tractor
Compare models
Description
Comfort, protection, and confidence.
Yanmar designed the SA425DHX tractor with high ground clearance and incredible stability for challenging terrain. Then we added a four-post rollover protective structure (ROPS). That makes it possible for you to order an optional soft-side cab or a hard-side cab with a heater. With protection from the cold or rain, you’ll be more comfortable and productive.
Yanmar outfits the SA425 DHX with a larger, more aggressive tire package, which increases ground clearance and provides more stability over the roughest parts of your property. The design also means you’ll operate with complete comfort and confidence.
Features
- Redesigned operator station with comfort seat
- Cast iron transmission and front axle and dual hydraulic pump
- Two side-by-side hydrostatic transmission pedals
- Full-frame chassis
- Electro hydro independent PTO with one-touch on/off
- Front-end loader capacity + quick hitch
- Smooth, hydraulic power steering
Download brochure
Cover the tougher territory.
The 425 DHX is outfitted with a larger, more aggressive tire package. This makes for a tractor with increased ground clearance and greater operational stability over challenging terrain. It means you can get on board and operate in the toughest of territory with complete comfort and confidence. And with this increased operating confidence, you’ll be able to get even more out of what your land has to offer. Not bad, huh?
Simply put, lift more.

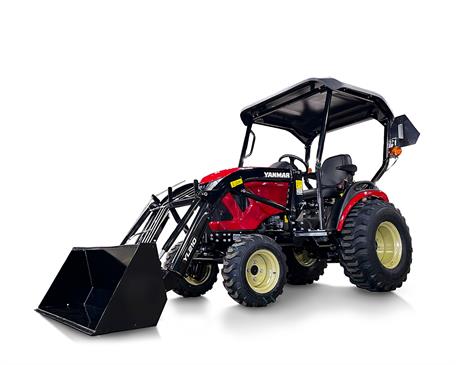

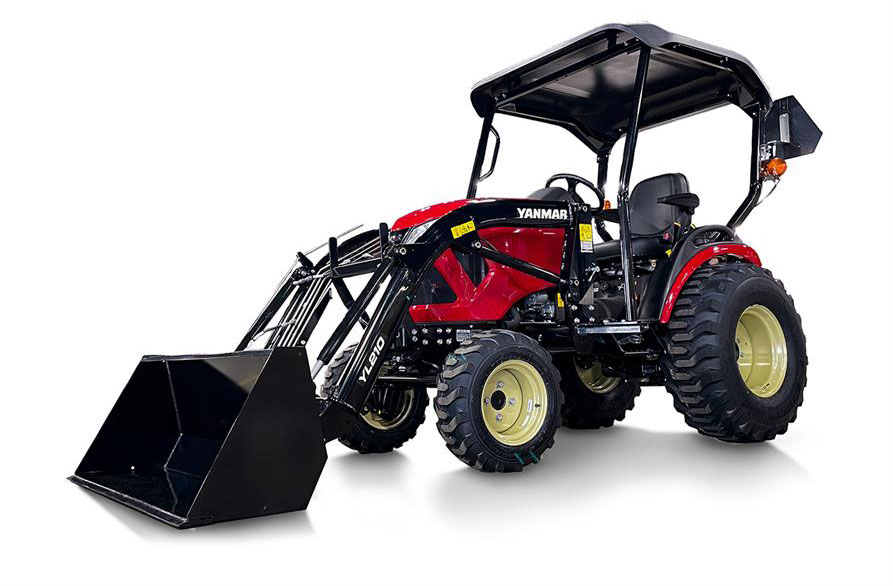

The pure power of the 425 DHX means the front loader can lift a category-leading 1,200 lbs of anything you wish to lift. That’s power usually associated with much larger tractors. But that’s Yanmar’s strength. Powered by fuel-efficient diesel engines that let you do more. And the last time we checked, more is good.
Precise rear implement control.
Making sure your rear implements operate in a position that’s always repeatable means your tasks get done quickly and more accurately. And that’s what Yanmar’s unique True Position Control delivers. An easy-to-reach control lever controls the rear implements operating height and makes sure it’s always right where you need it. Makes for easy operation. And it takes better care of your land. Everyone likes that.
Specs & Compare
Featured Specs
Model |
SA425DHX |
Add to compare |
Add to compare |
Add to compare |
Gross Power: EPA Regulation HP (kW) |
23.9 (17.8) |
|
|
|
Overall Length (with 3-Point Hitch) |
105.8 (2,688) |
|
|
|
Overall Width (with R4 Tires) |
54.1 (1,373) |
|
|
|
Overall Height (with Roll-Over Protection, and R4 tires) |
87.2 (2,215) |
|
|
|
Transmission |
Hydrostatic Transmission, Dual Range Speeds |
|
|
|
Drive Type |
Selected 4WD |
|
|
|
Lift Capacity (Pivot Pin) lb. (kg) |
1,200 (545) |
|
|
|
Bucket Width in. (mm) |
53 (1,346) |
|
|
|
PTO Power HP (kW) |
18.1 (13.5) |
|
|
|
Rear PTO Speed/Engine RPM |
554/3,200 |
|
|
|
Mid PTO Speed/Engine RPM |
2,057/3,200 |
|
|
|
Wheel Base |
63.0 (1,600) |
|
|
|
Front Tires (with R4) |
23x8.50-12 4PR |
|
|
|
Rear Tires (with R4) |
14-17.5 6PR |
|
|
|
3-Point Hitch |
Limited Category 1 |
|
|
|
Download full spec sheet
